Mesh 25 Mm X 25 Mm Double Wire Loop Fence Metal Welded Wire Mesh
Double Wire Loop Fence Description
Double wire mesh fence is made of heavy welded mesh panels with double horizontal wires. This complete professional fencing system provides both extreme rigidity and security. It is recommended for professional fencing of schools, playgrounds, parks, sports grounds, public buildings, factories, workshops, airports,etc
Double Wire Loop Fence Specification
| Height
× Width Panel
mm | Mesh Size
mm | Wire Diameter mm | Post of Height
mm |
|
| 630×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1100 |
| 830×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1300 |
| 1030×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1500 |
| 1230×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1700 |
| 1430×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1900 |
| 1630×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2100 |
| 1830×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2400 |
| 2030×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2600 |
| 2230×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2800 |
| 2430×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 3000 |
| Fence Post | Dimensions of Type | Square post/Rectangle post/Peach post/Round post
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post |
| | Clips/Clamps | Metal Clips and Plastic Clips |
| Rain hat or caps for posts | Metal caps or plastic caps |
Double Wire Loop Fence Features
1. Attractive appearance
Different design from common fence, Round edges, Triangle edges and square edges make the fence more beautiful and elegant.
2. Built in rigidity
The rolled beam profile at the top and bottom edge of each panels results in maximum rigidity.
3. Longevity
The polyester coating is able to guarantee longevity. With different color can make the fence become markedly.
4.User friendly
Edge fence is easy to install and dismantle, Friendly top and bottom design, Safety and have low maintenance.
Double Wire Loop Fence Process
Double Wire Loop Fence Packing
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
Product Tags:
|
|

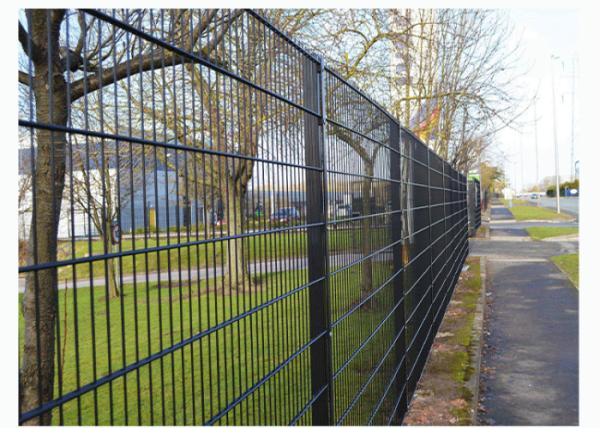

Mesh 25 Mm X 25 Mm Double Wire Loop Fence Metal Welded Wire Mesh Images
|
